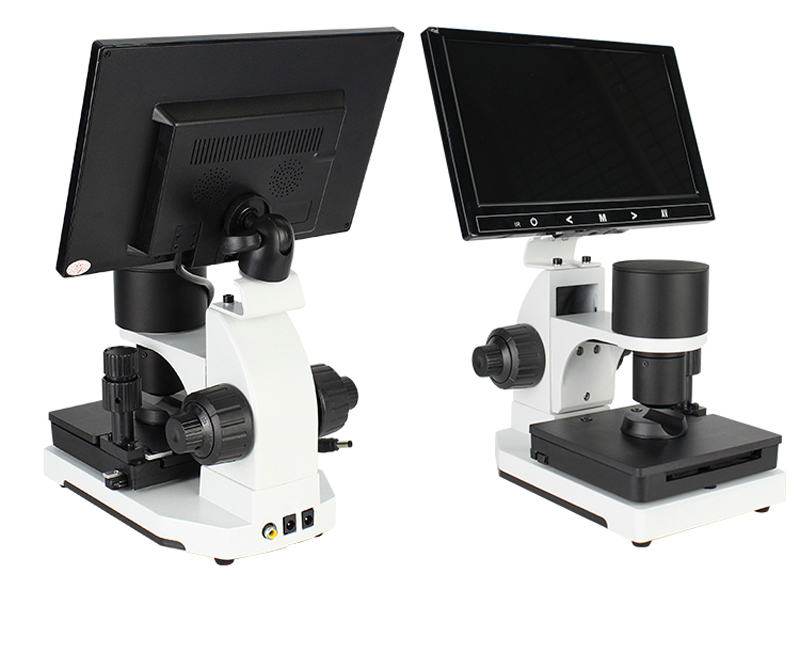

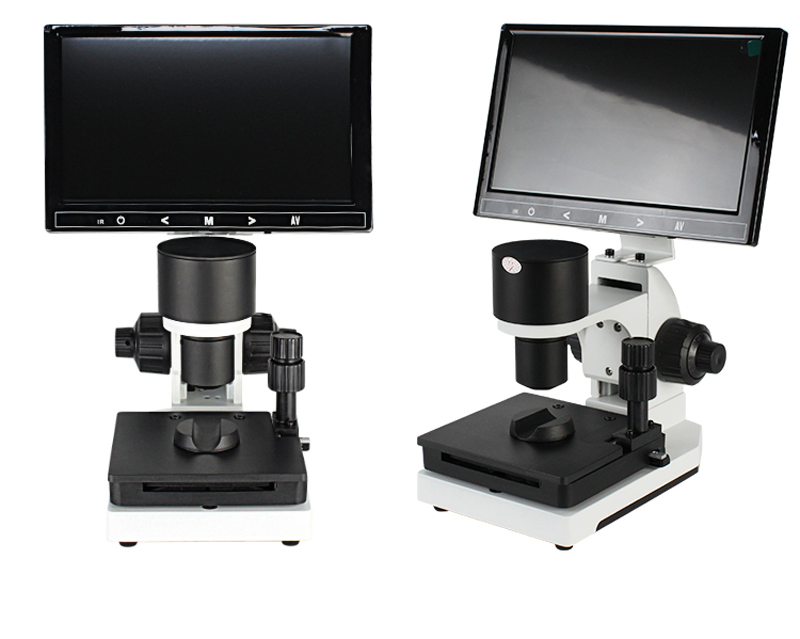

Nailfold microcirculation blood capillary test microscope machine

Nailfold capillaroscopy microcirculation detector principle:

Microcirculation is the circulation of the blood in the smallest blood vessels,present in the vasculature embedded within organ tissues. This contrasts with macrocirculation, which is the circulation of blood to and from the organs. Microcirculation is composed of terminalarterioles, capillaries capillaries and venules which drain capillary blood. The vessels on the arterial side of the microcirculation are called the arterioles, which are well innervated, are surrounded by smooth musclecells, and are 10-100 µm in diameter. Microcirculation is usually very smooth, but by high blood lipids, blood viscosity, erythrocyte aggregation, affect cardiovascular disease and other factors, microcirculation appears white tiny blood clots, which with the blood flow in the body. Once the blood vessels become thin, distorted and clog the blood vessels (especially the elderly), there will be a corresponding disease, ranging from dizziness, insomnia, dizziness, numb lips, palpitation, chest tightness. If there is a large area of the brain or heart blockage will cause hemiplegia, language barriers, myocardial infarction. Therefore, early detection of thrombosis should check the microcirculation by actively antithrombotic thrombolysis, and clear the microcirculation, preventive measures. Currently, the primary means of discovery is microcirculation microcirculation microscopic examination instrument, and general such as CT, MRI, X-ray, B-and so can not be found, so the

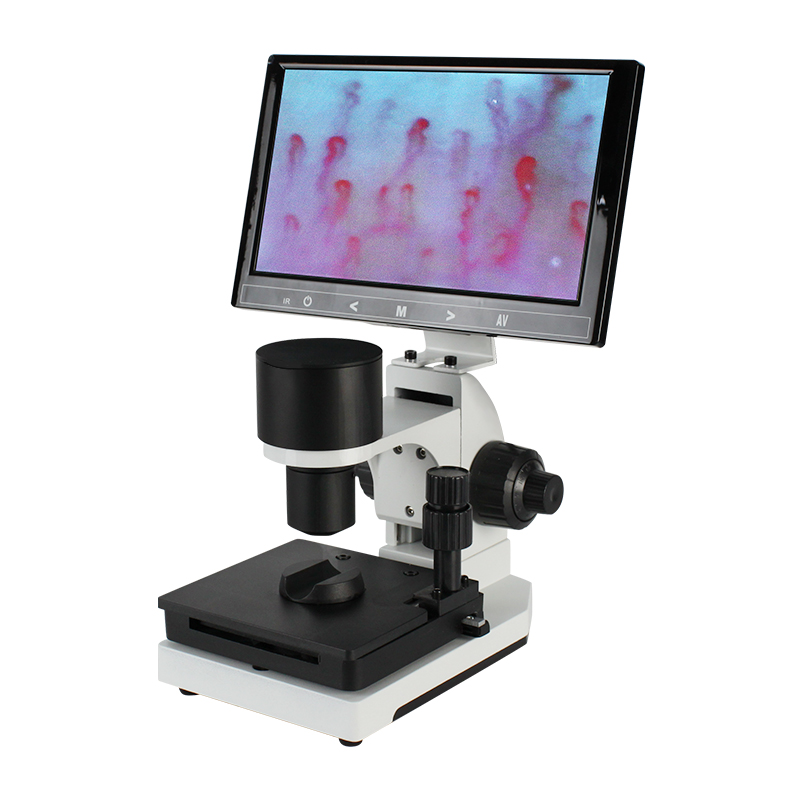

clinical microcirculation earlier than macroscopic examination has found early diagnosis role. Meanwhile, health groups and immunocompromised people are mainly in the microcirculation, lack of microvascular perfusion, vascular blurred, slow blood flow. By detecting the microcirculation can also quickly find the body in which the current situation in a timely manner as soon as possible be microcirculation, increase resistance and immunity, improve the sub-healthconditions. The Nailfold Capillaroscopy Microcirculation Microscope is an advance medical photoelectric apparatus,equipped with built in special LED light source,used mainly in observation on human nail fold capillary microcirculation or term as video Nailfold capillaroscopy,Such as capillary blood flow, abnormal microcirculation of the vascular structure, cell adhesion, through its powerful 480X magnification. Undistorted, real time dynamic video streaming via Sony CCD imaging device onto the LCD monitor screen. Simply insert the finger to the holder below the optical lens apparatus, fine-tune to fix the focal length and uncover the desired images within seconds.Blood capilliary microcirculation
microscope is a non-invasive diagnostic tools, which is gaining large credit among physicians of different specialities in for study of skin blood capilliary network.

1. Technical Specifications

Amplification: 480x
Input :  AC input 100-240V50/60Hz DC
Output :  DC12V,2A
Objective:   5X,effective range 25mm
Objective type:  Achromatization
Mechanical stage:   X-Y double layer compound mechanical stage
Focusing mechanism:  Coaxial coarse and fine adjustment
Inner dimming:   LED cold light
Type I or B
Power: 12V,1A, DC power source
Built-in camera 80 000 pixels
LCD monitor :  8inch Color LCD monitor
Inner package: Aluminum password box, memory foam
Out package : Corrugated box

Product Features
1. It is not a invaded method to inspect the blood micro-circulate situation for the body.  The blood micro-circulate inspect the health situation by view perspective. It is a contact process. It can search the tip blood capillary position in 5 second. Easy operation (not traditional XY goods)
2. The micro-image is stable, clear and not move for contact process. high definition lens for micro-circulate machine
3.Light frame and easy to carry
4.Portable light design(250g)

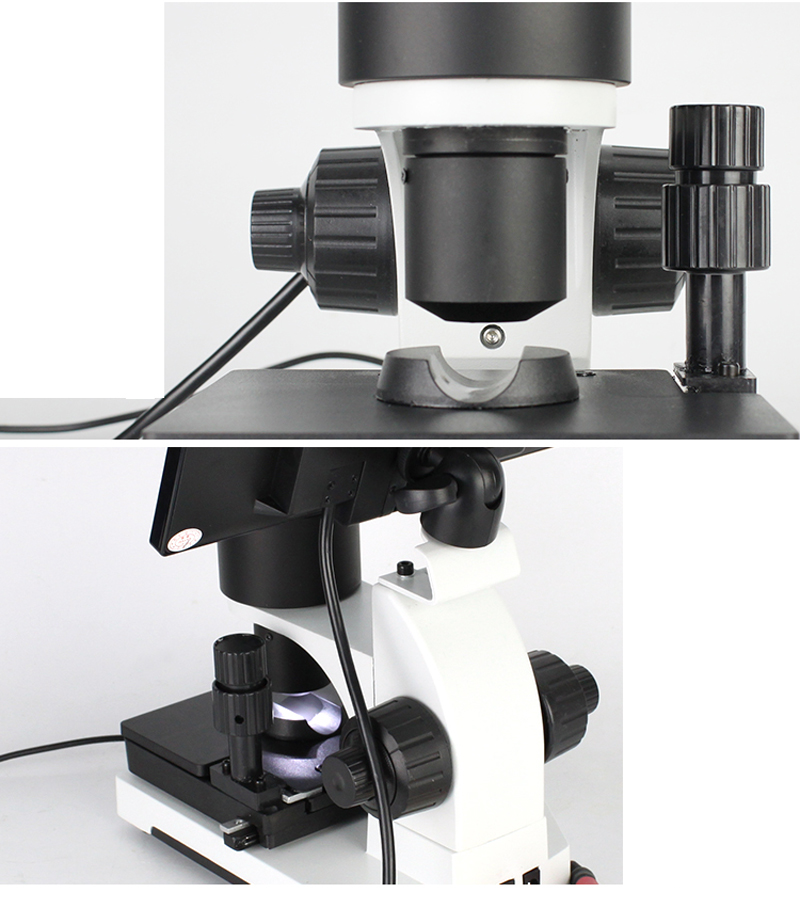

5.The lens can be exactly adjusted a focal distance to make the image clear
6. Lens with LED light, the light can throw straight on a target
